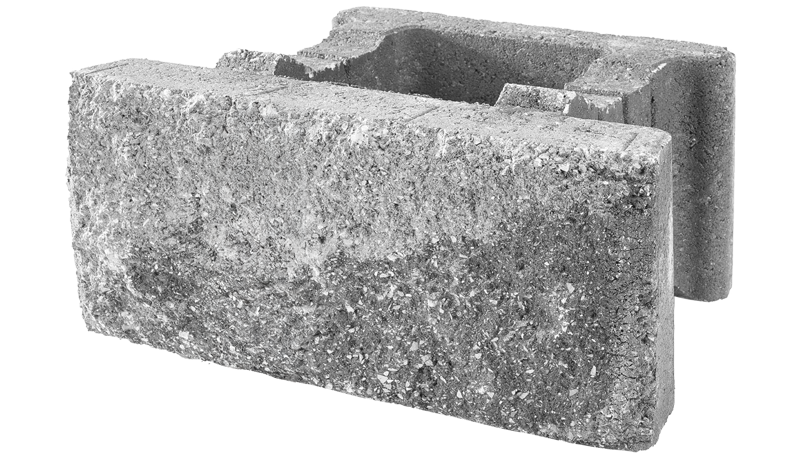

The BroadStone® series minimizes retaining wall installation costs while maximizing structural performance and aesthetics. Labor is reduced by shear lug connectors, and core filling. Material is reduced by maximizing the core-fill volume, which provides increased coverage per truckload and reduced shipping costs. The BroadStone® family of products delivers these advantages across a full line of block heights and face styles.
- Rugged exterior evokes the look and feel of naturally weathered stone
- Integral shear lugs easily mate with continuous shear channel to ensure precise setback.
- Superposed webs make core-filling fast and complete. Best-in-class weight. Rounded grips make handling safer and easier
- Low batter maximizes buildable site area
- Made of durable concrete with iron oxide pigments that resist fading in extended UV exposure.
UNIT DIMENSIONS
| Height | in | 8 |
| mm | 203.2 | |
| Length | in | 12 |
| mm | 304.8 | |
| Width | in | 18 |
| mm | 457.2 | |
| Units | /pl | 32 |
Technical Resources
Notice
Obtain the applicable LIMITED WARRANTY or send a written request to Pavestone, LLC, Five Concourse Parkway, Atlanta, GA 30328, USA. Manufactured under the authority of Pavestone, LLC®. © 2025 Quikrete International, Inc.
Stocked Colors
This product is available for custom manufacturing orders. Contact your local producer for more information.
Pallet Layout
| Pallet Weight | 2304 lbs |
| Pallet Coverage | 32 sq.ft. |
